Motor Power Robotic Shotcrete Machine 4kw For Midium Working Section Tunnel

Ask Lasest Price
Brand Name :	POTENTIAL
Model Number :	KC2512W
Certification :	ISO9001:2008
Price :	Negotiable
Payment Terms :	L/C, T/T
Supply Ability :	300 units per year
Delivery Time :	20-40 working days

Add to Cart

Product Details
Company Profile

Motor Power Robotic Shotcrete Machine 4kw For Midium Working Section Tunnel

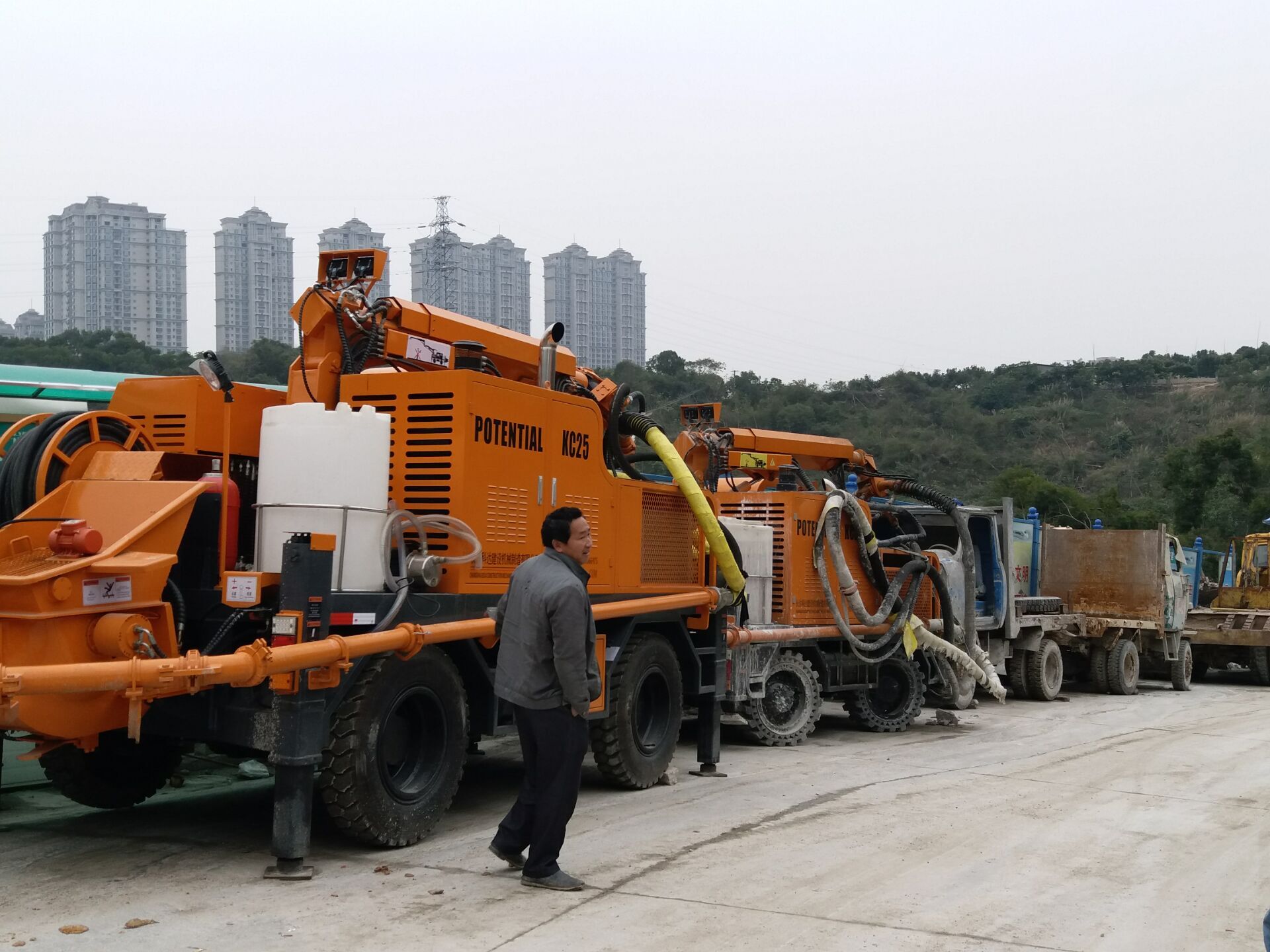

KC2512W Robotic Shotcrete Machine 10T Weight For Midium Working Section Tunnel

Specifications

No.	Item			KC2512W
1	Complete machine	Weight(T)		10
		Travelling speed(km/h)		0～15
		Grade ability(°)		25
		Approach/departure angle(°)		21/21
		Ground clearance(mm)		245
		Steering		4 wheel driving/steering/crab
		Traveling mode		wheels
		Outside dimension(L×W×H)(mm)		5900×2000×2650
2	Pumping system	Theoretical pump capacity (m³/h)		4～25
		Filling height(mm)		＜1200
		Max.aggregate size(mm)		≤16
		Max. theory outlet pressure (MPa)		7
		Pipe diameter(mm)		100
		Concrete cylinder diameter(mm)		160
		Concrete cylinder moving distance(mm)		800
		Hydraulic cylinder(cylinder diameter/pole diameter)(mm)		80/55
		Hydraulic cylinder moving distance(mm)		800
		Hopper capacity(L)		300
		Max.theoretical horizontal deliver distance(m)		/
		Max.theoretical vertical deliver distance(m)		/
3	Motor	Rated Power(kW/rpm)		45/1480
		Rated voltage(V)		three-phase/380(optional)
4	Engine	Mode		4 cylinder liquid-cooled diesel engine
		Rated power(kW/rpm)		60/2200
		Diesel tank volumn (L)		80
5	Air compressor	Mode		/
		Rated Power((kW)		/(outsourcing)
		Max.wind flow(m³/min )		＞10 (required inlet flow)
		Exhaust pressure(MPa)		＞0.5(required inlet pressure)
6	Shotcrete Boom	Boom mode		foldable + rotate + telescopic
		Max.spary area	Upward(m)	11
			Forward(m)	9.6
			Downward(m)	3.8
			Width(m)	19.2
		Min.spary area	Upward(m)	4
			Forward(m)	2～3
			Downward(m)	0
			Width(m)	6
		Main boom rotate angle(°)		270
		Main boom tilt angle(up/down)(°)		60/25
		Main boom telescopic length(mm)		/
		Telescopic boom rotate angle(°)		360
		Telescopic boom tilt angle(up/down)(°)		65/25
		Telescopic boom stretch length(mm)		2600
		Nozzle rotate(°)		360
		Nozzle swing (°)		240
		Nozzle brush(°)		360 continuous
		Nozzle diameter(°)		80
7	Additive system	Flow rate(L/h)		60～600
		Working pressure(MPa)		1.2
		Tank volumn(L)		200
		Suction length(m)		3m
		Motor rated power(kW)		1.5
8	Cleaning System	Flow rate(L/min)		14
		Working pressure(MPa)		14
		Motor rated power(kW)		4
9	Electric System	Operate mode		wireless romote control
		Control mode		PLC + touchscreen display
10	Cable Reel	Cable length(m)		80
		Power Source(V/Hz)		380/50(optional)
		Electric current(A)		400
