HG13 Spider Concrete Placing Boom 13m Boom Length ﹣20～48℃ Working Temperature

Ask Lasest Price
Brand Name :	POTENTIAL
Model Number :	HG13
Certification :	CE, ISO9001:2008
Price :	negotiable
Payment Terms :	L/C, T/T
Supply Ability :	300 units per year
Delivery Time :	7-15 working days

Add to Cart

Product Details
Company Profile

HG13 Spider Concrete Placing Boom 13m Boom Length ﹣20～48℃ Working Temperature

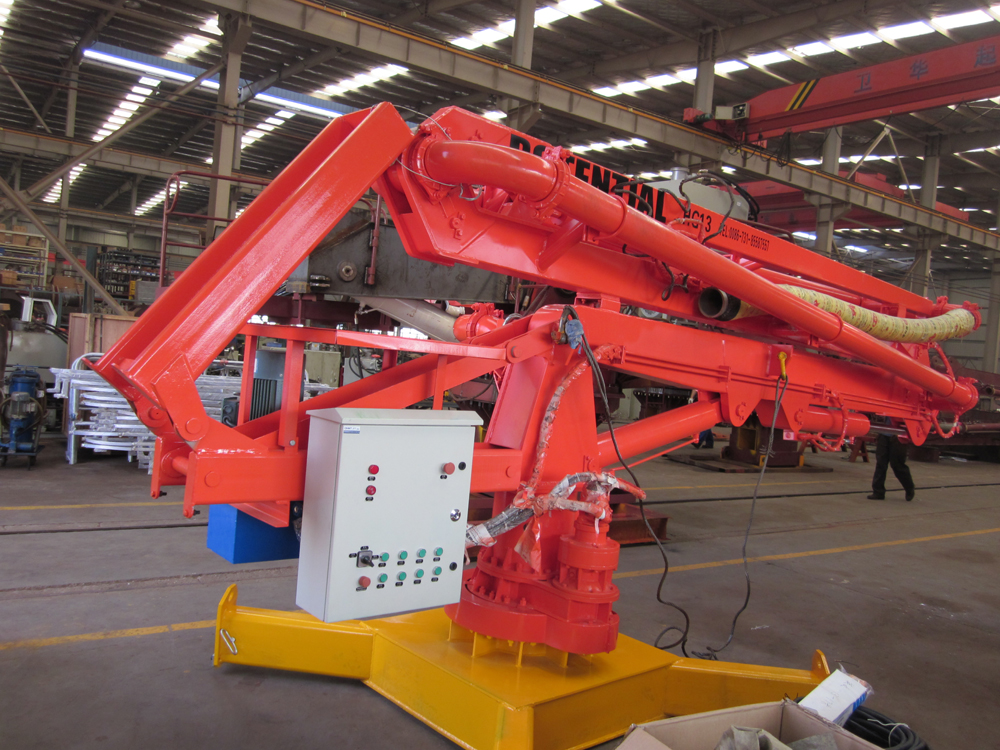

HG13 spider concrete placing boom, 13m boom length, concrete distributor

Advanced full hydraulic drive system

The hydraulic system of HG series mobile concrete placing boom can realize 360° slewing, the balance valve and solenoid directional control valve are relatively imported from

Italian Oil control and Germany Rexroth.

Reliable electrical system

Main components of HG series concrete placing boom are imported from world famous companies such as France Schneider.

Cable remote control and wireless remote control (option).

Specifications

Model		HG13	HG15	HG17
Structure		Outrigger Style (hydraulic foldable arm)
Boom Section		3	3	3
Delivery pipe dimension (outside diameter × thickness) (mm × mm)		Φ133×4	Φ133×4	Φ133×4
Delivery hose dimension (inside diameter × length) (″×mm)		5″×3000	5″×3000	5″×3000
Radius of placing boom (m)		13	15	17
Stationary height (to the joint between the end of the boom and Swivel table) (m)		2.35	2.7	2.9
Hydraulic foldable arm sections	1st section	3.9m	6.0m	6.67m
	2nd section	4.5m	5.0m	5.73m
	3rd section	4.6m	4.0m	4.61m
	4th section	N/A	N/A	N/A
Boom articulation (°)	1st section	－2～84.4	－2～90	－4～90
	2nd section	0°～176°	0°～176°	0°～176°
	3rd section	0°～180°	0°～180°	0°～180°
	4th section	N/A	N/A	N/A
Slewing range (°)		360	360	360
Power of motor (Kw)		4	4	5.5
Pressure of hydraulic system (MPa)		20	20	20
Type of hydraulic oil		ESSO NUTO H46	ESSO NUTO H46	ESSO NUTO H46
Interval of climbing frame (m)	Climbing	N/A	N/A	N/A
	Placing concrete	N/A	N/A	N/A
	Resting	N/A	N/A	N/A
Mode of operation		1. cable remote control	1. cable remote control	1. cable remote control
Mode of operation		2. radio remote control	2. radio remote control	2. radio remote control
Power		380V/50Hz	380V/50Hz	380V/50Hz
Weight	Without counterweight	2700kgs	3200kgs	4940kgs
Weight	Counterweight	1500kgs	2100kgs	2200kgs
working temperature		﹣20～48℃	﹣20～48℃	﹣20～48℃
